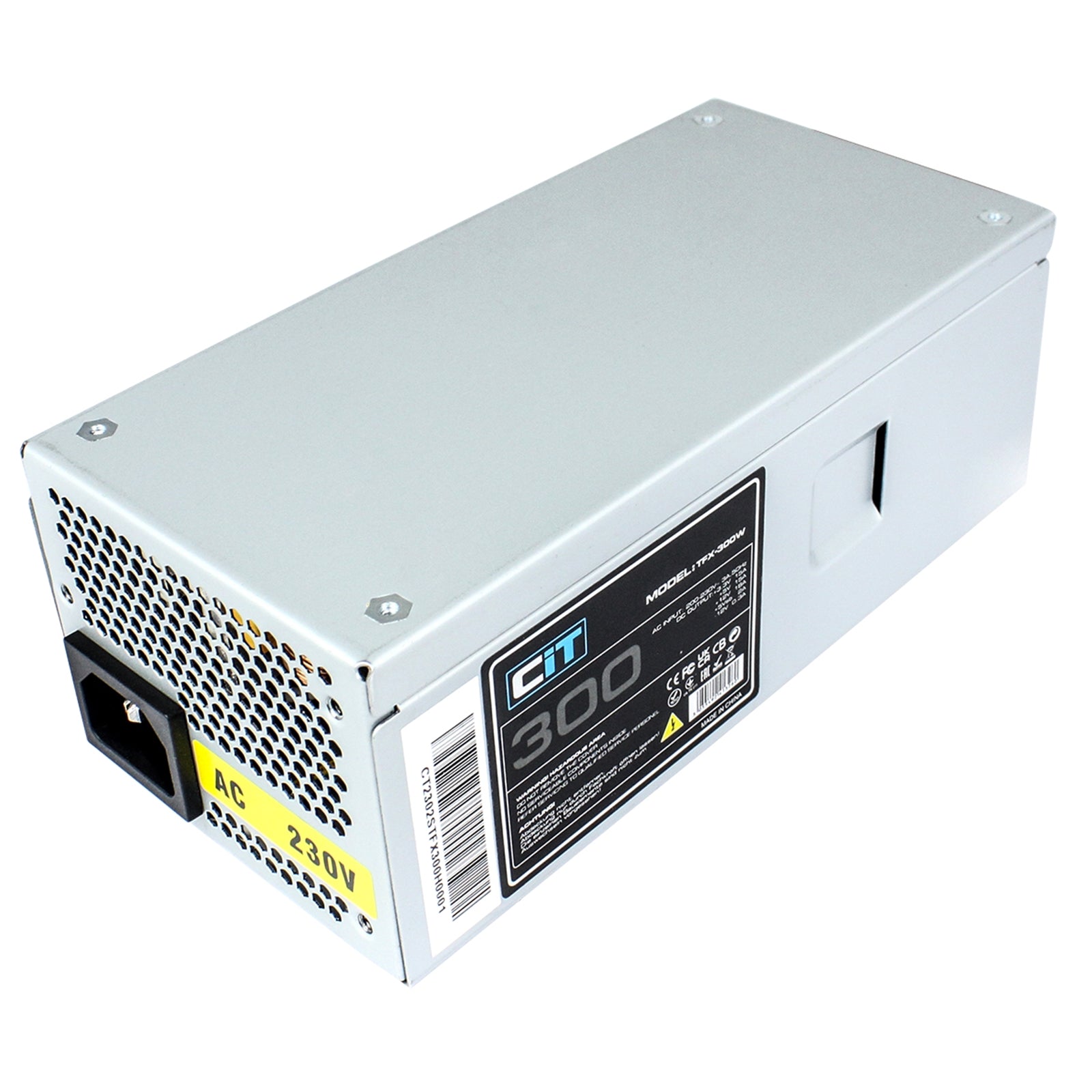

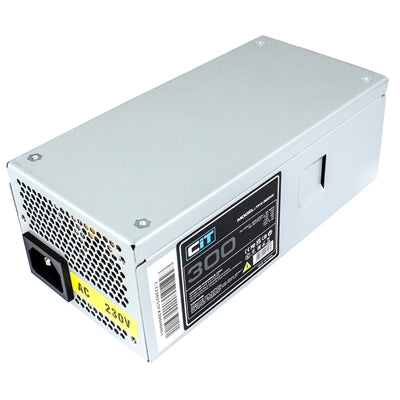

CIT 300W TFX-300W Silver Coating Power Supply, Low Noise 8cm Fan with intelligent fan speed control, Support standard TFX form factor
CIT 300W TFX-300W Silver Coating Power Supply, Low Noise 8cm Fan with intelligent fan speed control, Support standard TFX form factor
Inject your PC system with the TFX-300 it is a TFX 12 V v2.31 compliant, small and compact for small desktop cases. Expanding the scope of SFF design possibilities.
The best choice for system builders with features that enthusiasts want such as all silver exterior coating, low noise 80mm fan, and flat black cables.
In addition, the TFX-300 features a strong 12V rail design supports high stability outputs for even the most demanding hardware to provide reliable and high-performing system operation.
Specifications
Dimensions:
85mm x 65mm x 175mm (W x H x D)
Input Voltage:
200-230VAC
Input Current:
3A
Input Frequency Range:
50-60Hz
PFC:
PFC
Power Good Signal:
100-500ms
Connections
20+4 Pin Main Connectors: x 1
4+4 Pin 12V Connectors: x 1
SATA Connectors: x 3
4-Pin Molex Connectors: x 1
Hold Up Time:
10ms-40ms
Efficiency:
>72%
MTBF:
100,000 Hours
Protection:
OVP / UVP / OPP / SCP
Power:
300W
Operation Temperature:
0-40°C
Safety:
CE / UKCA / FCC / CB / REACH / EAC / RoHS
Cooling:
80mm Black Fan
Noise:
<17 dBA
Manufacturer Part Number:
CIT-TFX-300W
EAN Number:
5055492413260
Has Mains Plug:
No
Colour:
Silver
What's In The Box:
PSU
Manual
Unit (Product) Dimensions (mm):
85mm x 65mm x 175mm (W x H x D)
Packaging Dimensions (mm):
210mm x 76mm x 142mm (W x H x D)
Net Weight (KGs):
0.83 KGs
Gross Weight (KGs):
0.93 KG
