IIYAMA

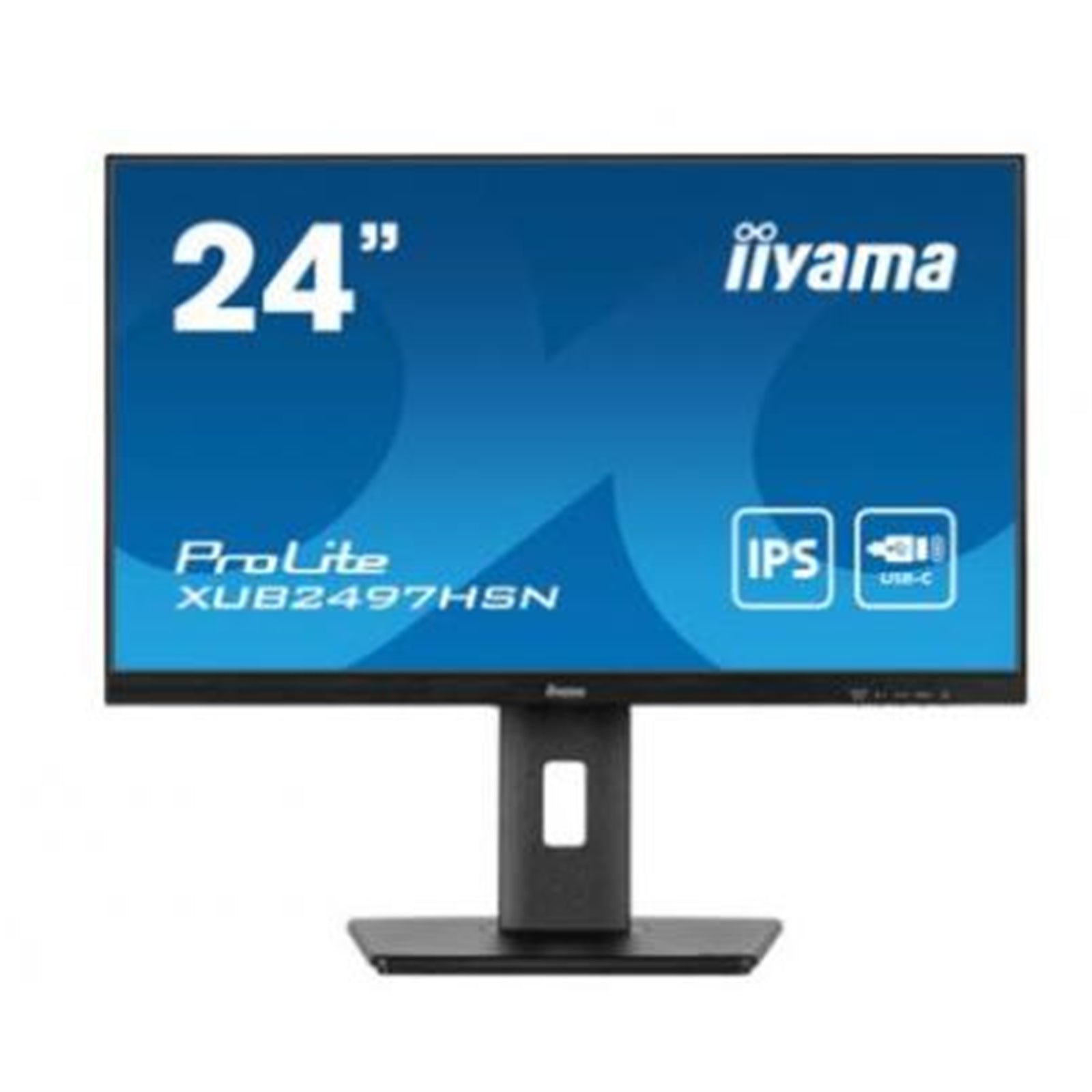

iiyama Prolite XUB2497HSN-B1 24 inch IPS Monitor, USB-C Dock, RJ45(LAN), Full HD, 1ms, HDMI, DisplayPort, USB-Hub, USB-C, 100Hz, Speakers, Black, Internal PSU, VESA, Height Adjust, Pivot

iiyama Prolite XUB2497HSN-B1 24 inch IPS Monitor, USB-C Dock, RJ45(LAN), Full HD, 1ms, HDMI, DisplayPort, USB-Hub, USB-C, 100Hz, Speakers, Black, Internal PSU, VESA, Height Adjust, Pivot

Regular price £192.50
Regular price Sale price £192.50
Sale Sold out
Taxes included.

PROLITE XUB2497HSN-B1

24 Inch IPS technology panel with USB-C dock and RJ45 (LAN)

Equipped with a USB-C dock connector, the XUB2497HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2497HSN allows you to easily adjust the screen position to your preferences.

USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

HAS (150MM) + PIVOT (ROTATION BOTH SIDES)
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

Specifications

Display Characteristics

Design
3-side borderless

Diagonal
23.8", 60.5cm

Panel
IPS Panel Technology LED, matte finish

Native Resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect Ratio
16:9

Panel Brightness
250 cd/m²

Static Contrast
1300:1

Advanced Contrast
80M:1

Response Time (MPRT)
1ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln (sRGB: 99%; NTSC: 72%)

Horizontal Sync
30 - 110kHz

Viewable Area W x H
527 x 296.5mm, 20.7 x 11.7"

Pixel Pitch
0.275mm

Colour
matte, black

Interfaces / Connectors / Controls

Signal Input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

Signal Output
DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)

USB HUB
x4 ((3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 7.5W))

USB-C
x1 (PD 65W)

USB-C DOCK
x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))

HDCP
yes

Headphone Connector
yes

RJ45 (LAN)
x1

Features

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
yes

Extra
i-Style colour

OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control Buttons
Power, Menu, Up / Right / Volume, Down /Left / Shortcut, Input / Exit

User Controls
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute)

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

Mechanical

Display Position Adjustments
height, swivel, tilt, pivot (rotation both sides)

Height Adjustment
150mm

Rotation (PIVOT function)
90°

Swivel Stand
90°; 45 ° left; 45° right

Tilt Angle
23° up; 5° down

VESA Mounting
100 x 100mm

Cable Management System
yes

Accessories Included

Cables
power, USB, HDMI, USB-C

Other
quick start guide, safety guide

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
18W typical, 0.5W stand by, 03W off mode

Sustainability

Regulations
TCO Certified, CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

Weight & Dimensions
Product dimensions W x H x D
538.5 x 350 (500) x 209.5mm
Box dimensions W x H x D
685 x 405 x 126mm
Weight (without box)
5.3kg
Weight (with box)
7.4kg
