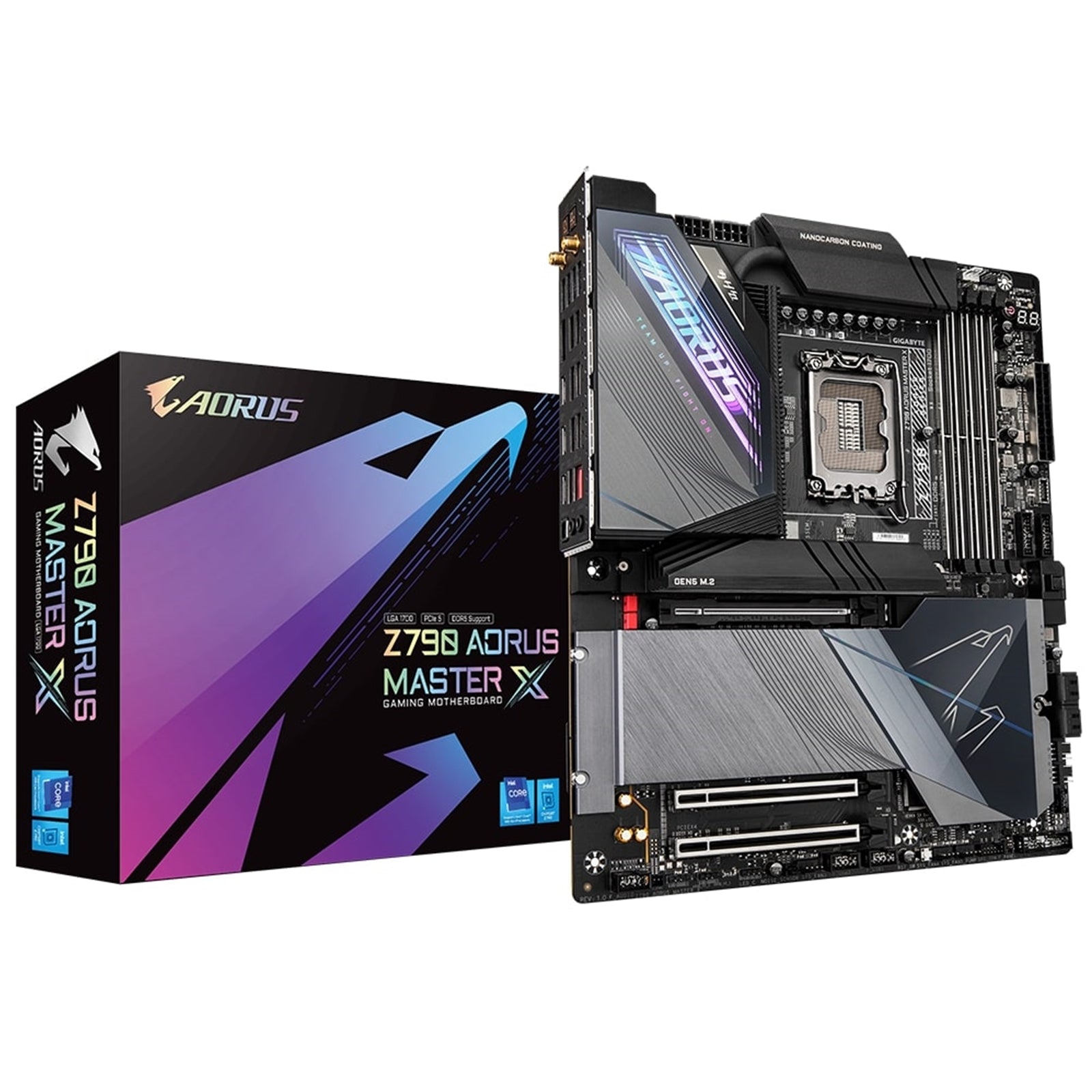

Gigabyte Z790 AORUS MASTER X Intel 1700 Socket Motherboard, E-ATX, 4x DDR5 Slots, 5x M.2 Sockets, 4x USB-C Port, Fitted I/O Shield, 10GbE LAN, Wi-Fi 7, 1x HDMI Port

Gigabyte Z790 AORUS MASTER X Intel 1700 Socket Motherboard, E-ATX, 4x DDR5 Slots, 5x M.2 Sockets, 4x USB-C Port, Fitted I/O Shield, 10GbE LAN, Wi-Fi 7, 1x HDMI Port

Regular price £546.05
Regular price Sale price £546.05
Sale Sold out
Taxes included.

Z790 AORUS MASTER X

Key Features
Supports Intel Core 14th and 13th processors
Digital direct 20+1+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click: M.2 heatsinks with screwless design
EZ-Latch Plus: PCIe 5.0 x16 slot & M.2 slots with quick release design
UC BIOS: User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4
Efficient Overall Thermal: VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
Fast Networking: 10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
Extended Connectivity: DP, Front USB-C 10Gb/s, Front & Dual Rear USB-C 20Gb/s
DTS:X Ultra Audio: ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC

Gen Designed for 14th Gen
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel Core 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Xceed in DDR5 Performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel Core 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Xtraordinary Power Delivery
The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Xpress Your Cool
Every Z790 AORUS MASTER X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Xpeditious Building Process
Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS MASTER X motherboard the most DIY-friendly ever.

Xtra Layers for Excellent Players
As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

Xpect everything UD
GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS MASTER X motherboard is built to last longer and stand stronger.

Xtensively Versatile
The Z790 AORUS MASTER X motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 7 support with a redesigned antenna, to an array of USB ports.

Xplore Infinite Utilities
The Z790 AORUS MASTER X motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Chipset
Intel Z790 Express Chipset

Memory
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio
Realtek ALC1220-VB CODEC
ESS ES9118 DAC chip
Support for DTS:X Ultra
High Definition Audio
2/4/5.1-channel
Support for S/PDIF Out

LAN
Marvell AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module
Qualcomm Wi-Fi 7 QCNCM865 (PCB rev. 1.0)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11be 320MHz wireless standard
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11be 320MHz wireless standard
Intel Wi-Fi 7 BE200 (PCB rev. 1.2)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11be 320MHz wireless standard
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

USB
Chipset:
3 x USB Type-C ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
Chipset+2 USB 3.2 Gen 2 Hubs:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points

Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
E-ATX Form Factor; 30.5cm x 26.0cm
