LINDY
LINDY 43373 DST-Mini Duo, USB-C Laptop Mini Docking Station 2x 4K HDMI, Dark Grey
LINDY 43373 DST-Mini Duo, USB-C Laptop Mini Docking Station 2x 4K HDMI, Dark Grey
Regular price
£92.12
Regular price
Sale price
£92.12
Unit price
/
per

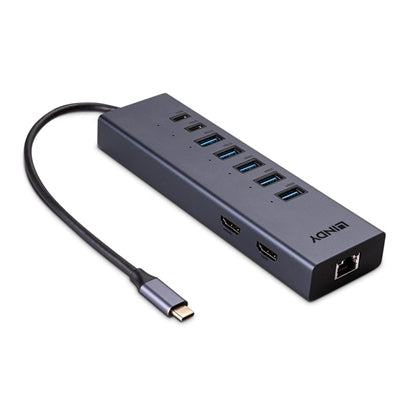

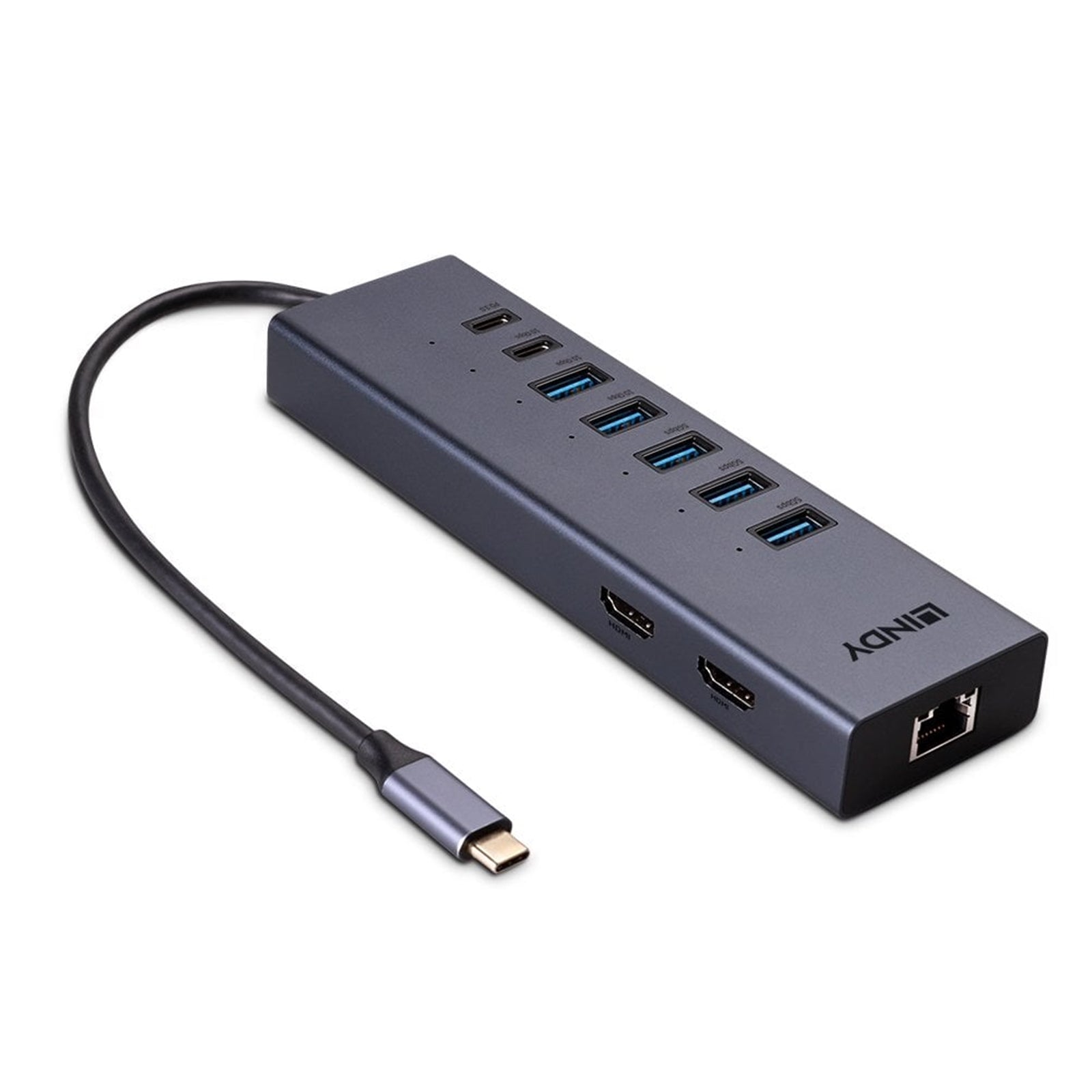

Lindy 43373 DST-Mini Duo, USB-C Laptop Mini Docking Station 2x 4K HDMI, Dark Grey
The DST-Mini Duo is a high performance and versatile solution for connecting laptops, tablets or smartphones to a range of interfaces including 2 HDMI displays. Featuring all critical interfaces required for a modern workstation, this Mini Docking Station uses a single USB 3.2 Type C cable to connect up to two 4K displays simultaneously, while improving connectivity to other devices through Gigabit Ethernet and USB 3.2 / 3.1 SuperSpeed 10Gbps and 5Gbps ports.
This Laptop Docking Station enables the connection of an HDMI display to a laptop at resolutions of 8K 7680x4320 30Hz using DisplayPort Alternate Mode through the USB Type C port. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming. It features three USB 3.2 Gen 2 Type C and A ports providing 10Gbps high data transfer speeds as well as three 5Gbps USB Type A ports.
This Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.
Please note that Apple computers do not support MST
Key Features
Connects 2 HDMI displays, USB peripherals, Gigabit Ethernet and power over a single cable
Supports 8K 30Hz or 4K 120Hz for a single display and 4K for two displays (MST)
Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x USB Type A, 1 x Type C) and 3port 5Gbps Hub
USB Power Delivery capable up to 100W
2 year warranty
Specifications
Interface
USB Type C to 5x USB Type A / 2x USB Type C / 1x RJ45 / 2x HDMI
Interface Standard
USB 3.2 / 3.1 Gen 2 & Gen 1, Gigabit LAN, HDMI 2.1
Supported Bandwidth
10 Gbps, 10/100/1000 Mbps
Maximum Input Resolution
8K 7680x4320 30Hz
Single Display
7680x4320 30Hz, 3840x2160 120Hz
Dual Displays
3840x2160 60Hz & 3840x2160 30Hz
Chipset
RTS5459, RTS5420, RM1211, VMM6210, PS8402A, AX88179A
Compatibility
USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.
Power Delivery
PD 3.0 up to 100W (20V 5A)
HDCP Support
HDCP 2.3
Supported Audio
7.1 8 Channels, sampling rate 192kHz/24bit, LPCM, DTS, AC3, HBR
Special Features
DisplayPort Alternate Mode, MST for Windows, Wake on LAN (WOL) support; supports MAC Address pass through (this feature is dependent upon the compatibility of the hardware used in each set up)
Connectors
Inputs
1x USB Type C (Male)
Outputs
5x USB Type A (Female), 1x USB Type C (Female), 1x RJ45 (Female), 2x HDMI (Female)
Power: 1 x USB Type C (Female) PD port
Physical Properties
Dimensions (W x D x H)
165mm x 49 mm x 21.7 mm
(Fixed) cable length
220mm (8.66in)
Housing Material
Aluminium, plastic
Net Weight
0.16kg (0.35lb)
Operating Temperature
0°C - 40°C (32°F - 104°F)
Storage Temperature
-10°C - 60°C (14°F - 140°F)
Humidity
10% - 85% RH (non-condensing)
Power Requirements
15W
Colour
Dark Grey
Miscellaneous
Packaging Type
Carton box
Packaging Dimensions
185x80x25mm (7.28x3.15x0.98in)
Gross Weight
0.2kg (0.44lb)
Warranty (Years)
2
Product Compliance
CE, FCC, REACH & RoHS, CP65
Package Contents
USB-C Laptop Mini Docking Station
Lindy manual
