COOLER MASTER

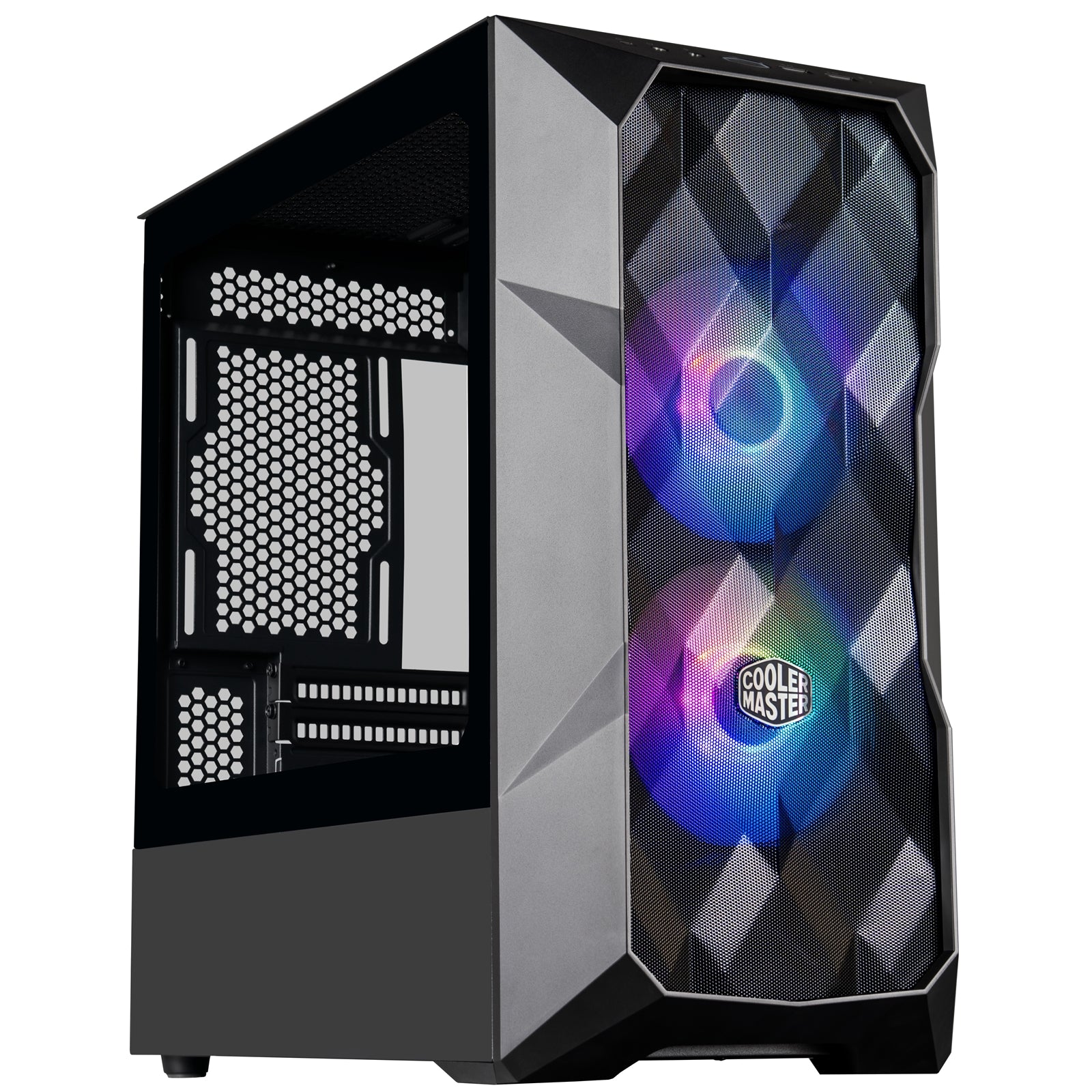

Cooler Master TD300 Mesh Case, Black, Mini Tower, 2 x USB 3.2 Gen 1 Type-A, Tempered Glass Side Window Panel, Polygonal FineMesh Front Panel, SickleFlow Addressable RGB Fans Included, Micro ATX, Mini-ITX
Cooler Master TD300 Mesh Case, Black, Mini Tower, 2 x USB 3.2 Gen 1 Type-A, Tempered Glass Side Window Panel, Polygonal FineMesh Front Panel, SickleFlow Addressable RGB Fans Included, Micro ATX, Mini-ITX
TD300 MESH
POSTMODERN ELEGANCE
TD300 Mesh brings together modern presentation and performance with its three dimensional artistic mesh front panel. The polygonal diamond-cut facade emphasizes the illumination of two included SickleFlow PWM ARGB fans, cast various glowing effects, shifting based on the viewing angle.
Cooler Master’s FineMesh technology simultaneously provides high airflow, dust filtration, and strengthened structure for maximum performance and effortless cooling. With the exclusive removable top panel, adaptable drive cage, and ample cooling support, TD300mesh provides a canvas of unlimited possibilities.
POLYGONAL MESH
Crafted with Cooler Master’s FineMesh technology, the polygonal mesh features a three-dimensional contour, capable of simultaneously providing high airflow and excellent dust filtration.
SICKLEFLOW PWM ARGB FANS INCLUDED
Pre-installed with two highly acclaimed 120mm ARGB Sickleflow fans, managed by the included Hub to easily customize a comprehensive ARGB lighting system and minimize ARGB port usage on the motherboard.
ARGB/PWM HUB
The included HUB features 5 ARGB and 4 PWM ports and facilitates cable management in the system, allowing you to conveniently control fans with a single connector for power and PWM signal and another for ARGB signal.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
TEMPERED GLASS SIDE PANEL
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
ROOM FOR UPGRADES
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
ADAPTABLE DRIVE CAGE
The drive cage can be shifted towards the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
Model Number
TD300-KGNN-S00
Colour
Black
Form Factor
Mini Tower
Materials
Steel, Mesh, Plastic, Tempered Glass
Dimensions ( L x W x H )
366.5 x 210 x 410mm (Body Size)
433 x 210 x 420.5mm (Incl. Protrusions)
Volume
38.24L (Incl. Protrusions)
Motherboard Support
Micro ATX
Mini-ITX
Expansion
Slots: 4
Drive Bays
5.25": N/A
2.5" / 3.5" COMBO: 2
2.5": 2
I/O Panel
2 x USB 3.2 Gen 1 (Formerly USB 3.0)
1 x 3.5mm Audio Jack
1 x 3.5mm Mic Jack
1 x ARGB/PWM Hub
Pre-Installed Fans
Top: N/A
Front: 2 x 120mm SickleFlow PWM ARGB Fans
Rear: N/A
Bottom: N/A
Fan Support
Top: 2 x 120mm / 2 x 140mm
Front: 3 x 120mm* / 2 x 140mm *can only mount behind the front plate
Rear: 1 x 120mm
Radiator Support
Top: 120mm, 140mm, 240mm, 280mm
Front: 120mm, 140mm, 240mm, 280mm
Rear: 120mm
Clearances
CPU Cooler: 166mm
PSU: 325mm (W/O front radiator & drive cage / 140mm (drive cage in backmost position)
GFX: 344mm
Cable Routing: Behind Motherboard Tray 18-22mm
Dust Filters
Front
Top
Bottom
Power Supply Support
Bottom Mount
ATX
