COOLER MASTER

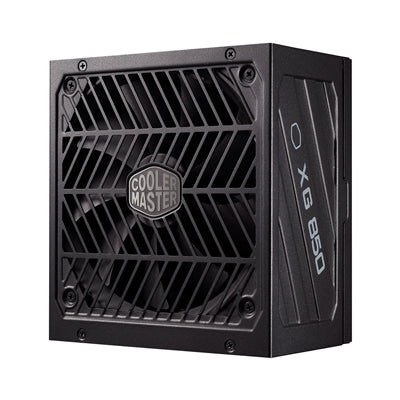

Cooler Master XG850 Platinum PSU - 80 Plus Platinum 850W, Fully Modular, Quiet 135mm Fan, Smart Thermal Control Mode with Hybrid Switch,
Cooler Master XG850 Platinum PSU - 80 Plus Platinum 850W, Fully Modular, Quiet 135mm Fan, Smart Thermal Control Mode with Hybrid Switch,
XG850 PLATINUM FULL MODULAR 80 PLUS PLATINUM POWER SUPPLY WITH SMART THERMAL CONTROL MODE
Intel ATX 12V Version 2.53
80 PLUS Platinum Certified
Quiet 135mm Fan
Smart Thermal Control Mode with Hybrid Switch
Full-Modular Cabling
10-Year Warranty
SILENCE IS PLATINUM
With a focus on thermal dissipation and maximized efficiency, this platform allows Cooler Master to offer an entirely new class of high efficiency products with 100% Japanese capacitors, boasting top-shelf performance with reduced ripple noise.
FIRST IN-HOUSE DESIGN PLATFORM
Cooler Master keeps searching for uniqueness, creativity, and more. XG Platinum is the first Cooler Master in-house designed power supply, providing next-level efficiency, rigid design, and sturdy performance to fulfill all your daily computing and gaming needs.
CRAFTED FOR EXCELLENCE
This professional grade power supply unit is built with full-bridge LLC resonant converter and DC-DC technology, made for the all users providing stability, reliability and so much more.
SILENCE IS PLATINUM
XG850 Platinum offers smart thermal control mode which you can do more with your system in the minimal level of noise generated by the silent fan.
FAN UP, FAN DOWN.
Both side panels on the XG Platinum are embossed with a stylish silk screen printed design. Install your PSU in either a fan up or fan down orientation while retaining 100% of the unit's aesthetic value anytime, anywhere.
BUILD YOUR WAY
Every facet of the XG Platinum was chosen with the goal of maximizing efficiency and thermal performance. Full modular cables were a must so that users could minimize the number of cables in their system based on their needs, reducing clutter and increasing both airflow and aesthetic quality.
BUILT TO LAST
With a 10 years warranty, you’ll be using this longer than most up to date home consoles and most of the other components in your system.
Specifications
Model
MPG-8501-AFBAP-UK
ATX Version
Intel ATX 12V Ver. 2.53
PFC
Active PFC
Input Voltage
100-240V
Input Current
12-6A
Input Frequency
50-60Hz
Dimensions
160 x 150 x 86 mm
Fan Size
135mm
Fan Speed
1800 RPM
Noise Level @ 100%
= 25 dBA
Efficiency
= 92% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0-50°C
Power Good Signal
100 - 150 ms
Hold Up Time
= 20ms
MTBF
>100,000 Hours
Protections
OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
Regulatory
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
12
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
6
USB Protocol 10P
1
Series
XG Series
80 Plus
Platinum
Modular
Full Modular
Wattage
850W
