Be Quiet! Dark Power 13, 750W PCIe 5.0 Fully Modular, 80PLUS Titanium, Quad Rail, 62.5A, 135mm Fan, ATX 3.0 PSU
Be Quiet! Dark Power 13, 750W PCIe 5.0 Fully Modular, 80PLUS Titanium, Quad Rail, 62.5A, 135mm Fan, ATX 3.0 PSU

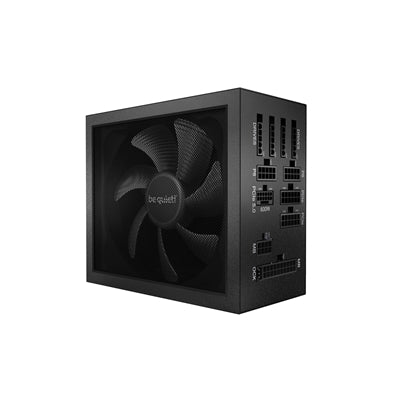

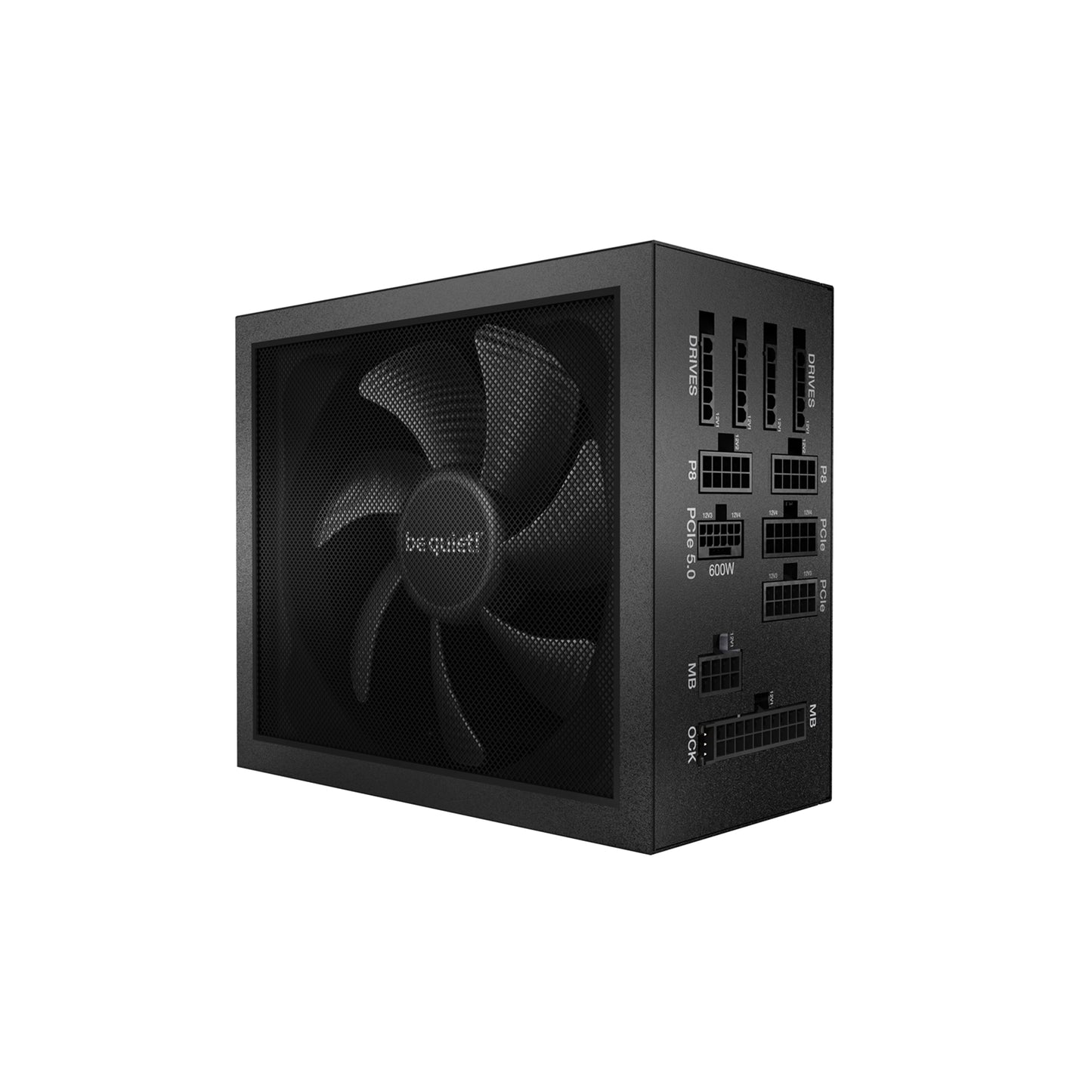

DARK POWER 13 - 750W
No Compromise Silence and Performance
The be quiet! Dark Power 13 750W offers 80 PLUS Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
- 80 PLUS Titanium efficiency (up to 95.8%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
- Modular cable management for maximum convenience
- 10-year manufacturer’s warranty
Specifications
Efficiency
80 PLUS certification:
Titanium
Efficiency (%) at 230V, 2% load:
72.2
Efficiency (%) at 230V, 10% load:
91.8
Efficiency (%) at 230V, 20% load:
94.8
Efficiency (%) at 230V, 50% load:
95.8
Efficiency (%) at 230V, 100% load:
93.8
Output
Multi-rail operation (12V rails):
4
12V single rail operation:
Yes
Overclocking key:
Yes
+3.3V (A):
22
+5V (A):
22
+12V1 (A):
25
+12V2 (A):
25
+12V3 (A):
30
+12V4 (A):
30
-12V (A):
0.5
+5Vsb (A):
3
Max. combined power 12V (W):
744
Max. combined power 12VHPWR (W):
600
Max. combined power 3.3V + 5V (W):
110
Hold-up time at 100% load (ms):
22.6
Power good signal (ms):
100 - 150
Cables and Connectors
Modular cables:
Yes
Sleeved cables:
All
Maximum cable length (cm):
105
Cable length to motherboard (cm):
60
No. of cables:
12
ATX-Motherboard (20+4-pin):
1
P4+4 (CPU):
1
P8 (CPU):
1
12VHPWR cables:
1
PCI-e 6+2-pin (GPU):
4
SATA:
12
PATA:
3
Environmental Directives
Energy Star:
8.0
ErP:
Yes
WEEE:
Yes
RoHS:
Yes
Triman:
Yes
Scope of Delivery
Thumb screws:
Yes
Screws:
Yes
Cable ties:
Yes
Casing
Dimensions without cable (L x W x H), (mm):
175 x 150 x 86
Weight (kg):
1.96
Color:
Black
Service
Warranty (Years):
10
