GIGABYTE

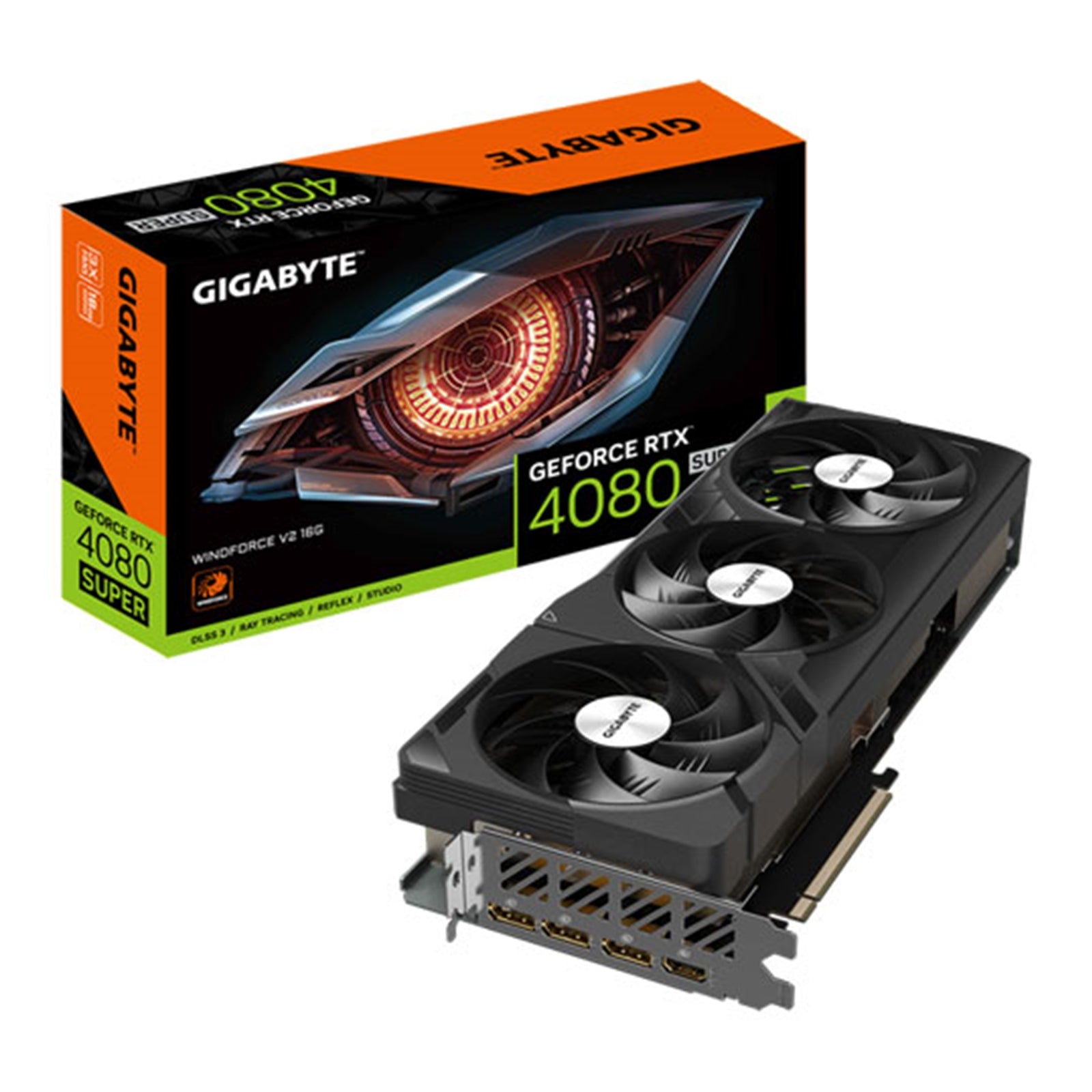

Gigabyte NVIDIA GeForce RTX 4080 SUPER WINDFORCE V2 16G Graphics Card, 16GB GDDR6X, 10240 CUDA Cores, 2550 MHz Core Clock, Triple Fan, 3x Display Ports / 1x HDMI Port

Gigabyte NVIDIA GeForce RTX 4080 SUPER WINDFORCE V2 16G Graphics Card, 16GB GDDR6X, 10240 CUDA Cores, 2550 MHz Core Clock, Triple Fan, 3x Display Ports / 1x HDMI Port

Regular price £1,105.04
Regular price Sale price £1,105.04
Sale Sold out
Taxes included.

GeForce RTX 4080 SUPER WINDFORCE V2 16G

KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4080 SUPER
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
Dual BIOS
Protection metal back plate
Anti-sag bracket

CORE CLOCK
2550 MHz

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

Graphics Processing
GeForce RTX 4080 SUPER

Core Clock
2550 MHz

CUDA Cores
10240

Memory Clock
23 Gbps

Memory Size
16 GB

Memory Type
GDDR6X

Memory Bus
256 bit

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680 x 4320

Multi-view
4

Card size
L=330 W=136 H=58 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
750W

Power Connectors
16 Pin*1

Output
DisplayPort 1.4a x 3
HDMI 2.1a x 1

Accessories
Quick guide
Anti-sag bracket
Anti-sag bracket installation guide
One 16 pin to triple 8-pin power adaptor
