LINDY

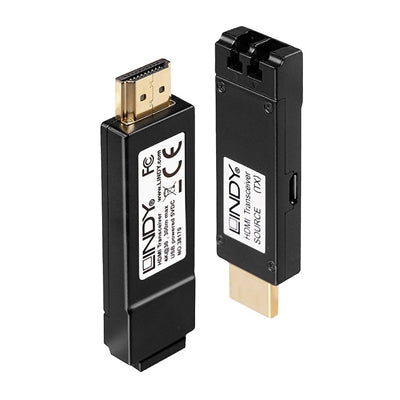

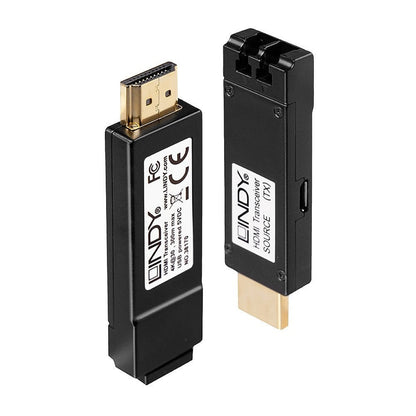

LINDY 38170 300m Fibre Optic HDMI 4K30 Extender, 10.2 Gbps Total Bandwidth over Single 2-core Fibre Optic Cable Link, Supports lossless audio formats including Dolby TrueHD and DTS-HD, 2 year warranty
LINDY 38170 300m Fibre Optic HDMI 4K30 Extender, 10.2 Gbps Total Bandwidth over Single 2-core Fibre Optic Cable Link, Supports lossless audio formats including Dolby TrueHD and DTS-HD, 2 year warranty
Regular price
£424.97
Regular price
Sale price
£424.97
Unit price
/
per
HDMI fibre optic extenders provide reliable extension of HDMI signals over greater distances that are not possible with passive or network cabling solutions. Fibre cable also provide high immunity to RF and EM interference, making this ideal for use in industrial or other high interference installations.
The Lindy Fibre Optic HDMI 4K30 Extender is a cost effective, high performance solution for sending reliable HDMI signals over longer distances using low cost fibre optic cable.
Supporting a maximum resolution of 3840x2160@60Hz, video content can be seen with incredible 4K UHD clarity at distances up to 300m, perfect for use in commercial situations that require the source and display to be positioned far apart that may also include video wall setups or presentation equipment, as well as other applications in pro-AV and digital signage. With support for multi-channel audio, this device will ensure an impressive three-dimensional surround sound performance to compliment video content.
As opposed to other extender solutions, this system requires only a single OM3 LC duplex multimode (50/125µm) fibre cable, which can be detached from the transmitter and receiver, also ensuring cabling can be ran though smaller spaces for a simple installation process.
The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the HDMI source and display. This allows each device to be connected to a range of source devices including media players and Blu-ray players to display monitors and Tvs. The modules are then connected together using a single, standard LC duplex single mode fibre cable of up to 300m in length (fibre optic cable is not included).
Specifications
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 10.2Gbps
Maximum Distance: 300m (984.24ft)
Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
HDCP Support: Pass-through
EDID Pass Through: Pass-through
Supported Audio: Pass-through
Separate Audio Ports: -
IR Support: -
CEC Support: -
Serial Interface: -
Transmission Protocol: -
Transmission Medium: 1 x Duplex LC (50/125µm)
Laser Class (only for Fibre): 1
Wavelength (only for Fibre): 850nm
Chipset: -
Special Features: Auto Laser Disabling Function
Connectors
Transmitter Input: HDMI (Male)
Transmitter Output: Duplex LC
Receiver Input: Duplex LC
Receiver Output: HDMI (Male)
Bi-directional Ports: -
Power: USB Micro-B
Physical Properties
Dimensions (approx.) WxDxH: 75x20x12mm (2.95x0.79x0.47in) per unit
Housing Material: Metal
Net Weight: 0.048kg (0.11lb) per unit
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 75% RH (non-condensing)
Power Requirements: -
Colour: Black
Miscellaneous
Packaging Type: Carton box
Packaging Dimensions: 160x220x50mm (6.3x8.66x1.97in)
Gross Weight: 0.2kg (0.44lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
Transmitter unit
Receiver unit
2 x USB A/Micro-B cable
Lindy Manual
